Cantilever Awning

Cantilever Awnings


Modular Stairs, Ramps, and Canopies

Prefabricated Cantilever Canopies

Upside Innovations manufactures prefabricated commercial canopies or awnings for entryways, loading areas, and building openings. Cantilever awnings easily attach to an exterior wall without column support, eliminating obstructions and improving aesthetics. Upside’s cantilever awnings also feature an internal drainage system that channels water away from entryways, loading docks, and building openings to keep them dry and safe.

CTA for Expert quote from Upside Innovations

Call (513) 889-2492

Custom Colors & Layouts

We can design prefabricated cantilever awnings for properties ranging from single-story to complex multi-story applications. Professional engineer stamps are available.

Internal Drainage

Designed with a discrete internal drainage system that ensures entryways stay dry.

Durable

100% industrial-grade aluminum that won’t rust, warp, or rot.

Always Compliant

Designed to meet your needs while complying with IBC and local building codes.

Fast Installation

Prefabricated and bolts together on-site with no welding required.

We Install

Our professional installation crew ensures that your project goes smoothly.

APEX stair ramp system components

The APEX system is a line of integrated access products that can be configured to meet the most challenging applications.

Product Resources

  • Product Info & Tech Specs
  • BIM/CAD Files
  • Specifications (CSI Spec)
  • Elevation/Plan Views
  • Environmental/LEED/HPD
APEX System PDF

Features

long lasting 100% aluminum

100% Aluminum – Long Lasting

Our aluminum awnings will never rust. They feature a low-maintenance material that ensures a long product lifecycle.

Easy Installation

Easy Installation

Upside’s professional installation crew will come to your site to install your cantilever awning to make sure that it’s done right the first time.

Internal Drainage System

Internal Drainage System

Awnings are designed with a discreet internal gutter and drainage system to keep water away from entryways and loading areas.

multiple color options

Multiple Color Options

Standard color options include white and black.

We offer a wide variety of color choices in a durable powder-coated finish. This ensures that your awning matches your building’s trim or provides a bold accent, all while maintaining a long-lasting, weather-resistant surface that won’t chip or fade like traditional paint.

Awning Specifications

LengthCustom length as required
Projection from BuildingMaximum: 5′
Space Between Support ArmsMaximum: 10′
Gutter Width6″
Fascia Height6″
ColorWhite or Black Standard.
Other colors available on request
Rendering showing APEX cantilever awning specifications
custom layouts

Custom Layouts

Whether you need an awning for a single doorway or an awning down the entire side of your building, we can design and configure a solution to meet any application.

HPD/LEED/ESG

Prefabricated systems are typically made with 6061 and 6063 aluminum alloys containing ≥99% and ≥50% recycled content.  Some prefabricated systems can help contribute to several LEED v4.1 credits and other green building rating systems.

Reconfigurable

Reconfigurable

Since the system is modular and bolts together, canopies and awnings can be reused or reconfigured as your needs change.

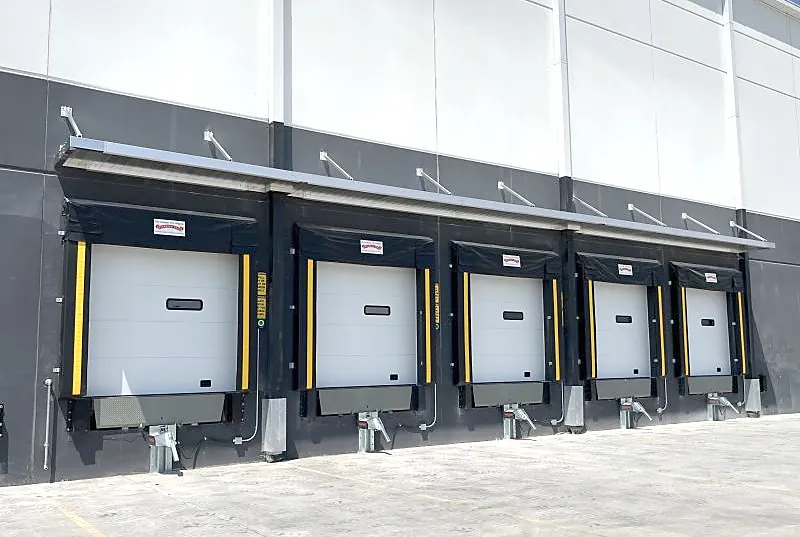

Loading docks

Because Upside’s APEX awning systems can be any length, they are often used for sheltering loading docks. Not only does this keep out the elements to improve safety, but they also help prevent Dock Seals from getting weathered which increases their service life.

Rendering showing APEX cantilever awning on a loading dock

How the drainage works

With a modular design, all awnings have built-in gutters. Using downspouts, water drains from post outlets, smartly channeling water away from entryways. An integrated deflector located in the post outlet controls the water flow.

Built with 100% industrial-grade aluminum, the canopy and posts will not rust, deform, or rot.

Rendering explaining how drainage works in APEX canopy options

So easy to work with!

Upside was so easy to work with! From estimating, to product selection, and all the way to delivery, they were very responsive and easy to work with. When we need another set of stairs, we will be buying them from Upside Innovations.

Matt S.

Worked out great.

Everything worked out great. Thanks to your team for taking care of the details.

Leo D.

Love the quality.

What a great product to work with. Love the quality and ease of assembly!

Denny R.

The steps are well built.

The steps are well built and sturdy enough to handle our needs safely but yet light enough for two men to move without the use of equipment.

Matthew P.

Couldn’t be happier with the whole experience.

The quality was fantastic, and they showed up quickly. From the time they were pulled off the delivery truck, the stairs were assembled, stood up, and lag bolted into the floor in under 1 hour. We really couldn’t be happier with the whole experience we have had with Upside Innovations. Plus, the stairs are much sturdier than I had even hoped for. Below is a picture of the steps installed on the side of our gun range. Thanks again for the great job.

Derek P.

Upside Innovations was a pleasure to work with from design to delivery.

Nick Bishop was responsive and quick to get a quote started, and Tish Carroll did an excellent job shepherding the job through the engineering design, fabrication, and shipping stages, expediting the process when the deadlines got tighter on my end. The product arrived early and was a pleasure to install – all of the hardware clearly marked and bagged, and the pallet strapped and wrapped securely. These stairs are being used for robotics research/testing and are working flawlessly. I would recommend Upside to anyone looking for professional crossover stairs for their project or building.

Bryan H.

Fit perfect and was easily assembled.

The platform and stairs are now up and installed and are fantastic. It fit perfect and was easily assembled just as you said it would. Thank you for a wonderful product.

Ken W.

Upside innovations was a pleasure.

Upside Innovations was a pleasure to work with from design to delivery. Nick Bishop was responsive and quick to get a quote started, and Tish Carroll did an excellent job shepherding the job through the engineering design, fabrication, and shipping stages, expediting the process when the deadlines got tighter on my end. The product arrived early and was a pleasure to install – all of the hardware clearly marked and bagged, and the pallet strapped and wrapped securely. These stairs are being used for robotics research/testing and are working flawlessly. I would recommend Upside to anyone looking for professional crossover stairs for their project or building.

Bryan H.

The stairs worked out great.

The stairs worked out great, and they love them!

Paul R.

I am very impressed.

It went together well, I am very impressed that your fit and finish was as tight as it is. Thanks again to everyone involved in the project.

Vince B.

Thank you for the quality work.

Thank you for the quality work. The stairs definitely enhance the look at Lakeside [Garden Apartments]. We appreciate your service to us, and we look forward to working with you again in the future.

Tanya P.

Our Services

Our team designs, manufactures, ships, and installs ADA & IBC-compliant stairs, ramps, and canopies to fit YOUR custom project. Our experts will work with you throughout the project to ensure your installation is correct to your specifications and code-compliant.
